Since the beginning we have had special place in our hearts for DIY and at-home solutions, so we're happy to spread the news whenever there is a tried and true solution to one of the many problems we all face. We've been using this program extensively and have put it through its paces, ensuring its ability to recalibrate the DualShock 4 and DualSense controllers, and now we would like to promote its use far and wide.
Before following this guide, please see our article on understanding what thumbstick drift is and how it can influence in-game settings:
https://battlebeavercustoms.com/pages/understanding-stick-drift
Did you read it? Thanks.
What this program does is sample where your thumbsticks sit naturally and then 'reset' your X and Y axis default positions to (0,0). Basically recalibrating the manufacturer's original settings and moving the center of your thumbsticks to sit closer to (0,0). While the hardware itself and using your controller in general will affect these values, this tool can help ensure that their calibration is as close to a true zero as possible.
Disclaimers
This is not guaranteed not fix stick drift. If your controller's thumbstick mechanisms are too old or too worn down, you most likely should have them replaced instead of using this tool. This tool can only move values to a better position; it cannot bring a physically broken mech back from the dead.
Battle Beaver is not responsible for any damage or unintended outcomes to modifying your controller with this tool.
Please read all of the instructions before and during the recalibration process.
How to Get Started Using the Tool
- This tool only works in chromium based browsers (Google Chrome, Edge, Opera, etc.) Open your browser and navigate to the DualShock Calibration GUI: https://dualshock-tools.github.io/#
- Connect your controller to your PC via USB cable.

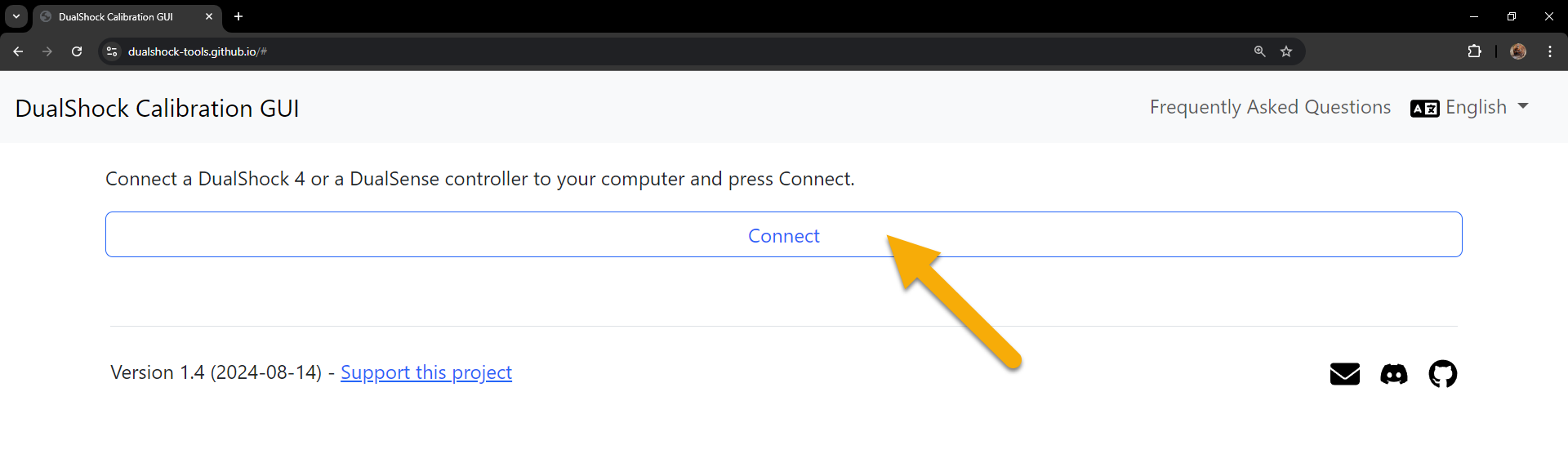

- Click "Connect"
- Select your controller, then click "Connect"

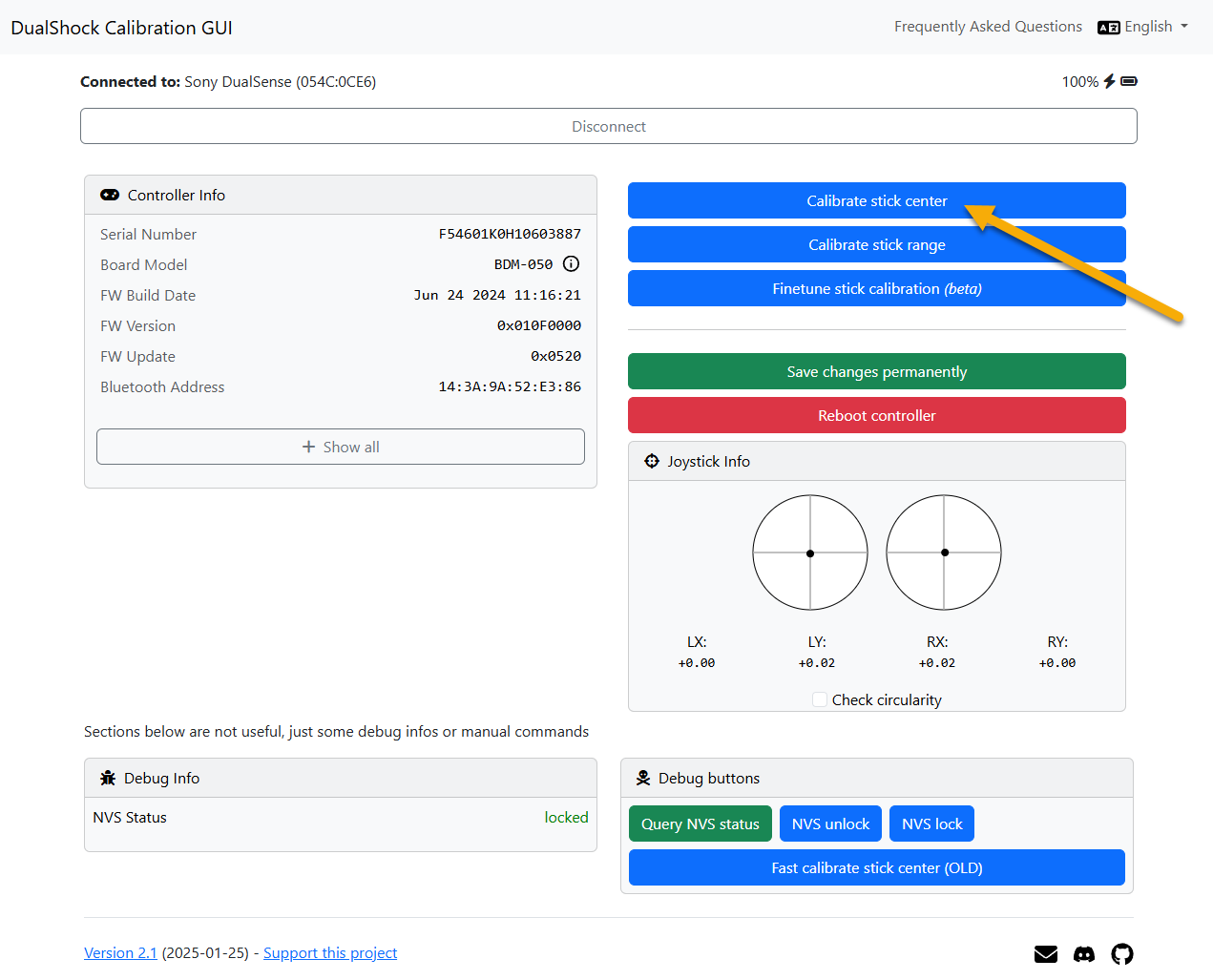

- With your controller now connected, click "Calibrate stick center."
Note: if your DualSense firmware is not up-to-date then none of the tools will be selectable. Please update your controller firmware using a PS5 console or the official Windows update app found here: https://controller.dl.playstation.net/controller/lang/en/2100004.html
-

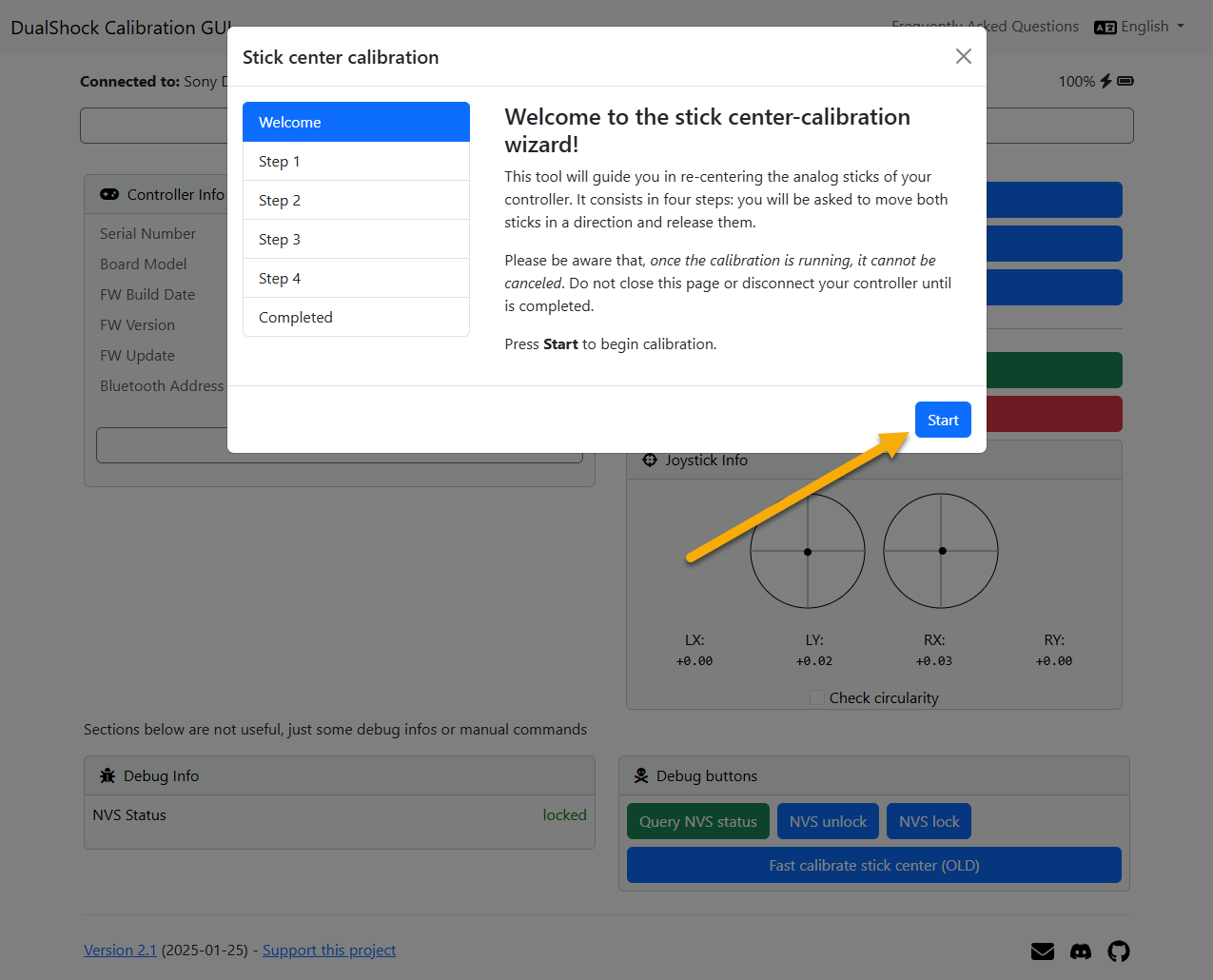

Read everything in the pop-up window and then click Start.
- Follow the step-by-step instructions until the thumbsticks have been recalibrated. PLEASE BE SURE TO READ EACH INSTRUCTION AND FOLLOW IT ACCORDINGLY.
Move both sticks to a diagonal corner, then release them back to the center. Repeat for each diagonal. These samples create the new stick center.

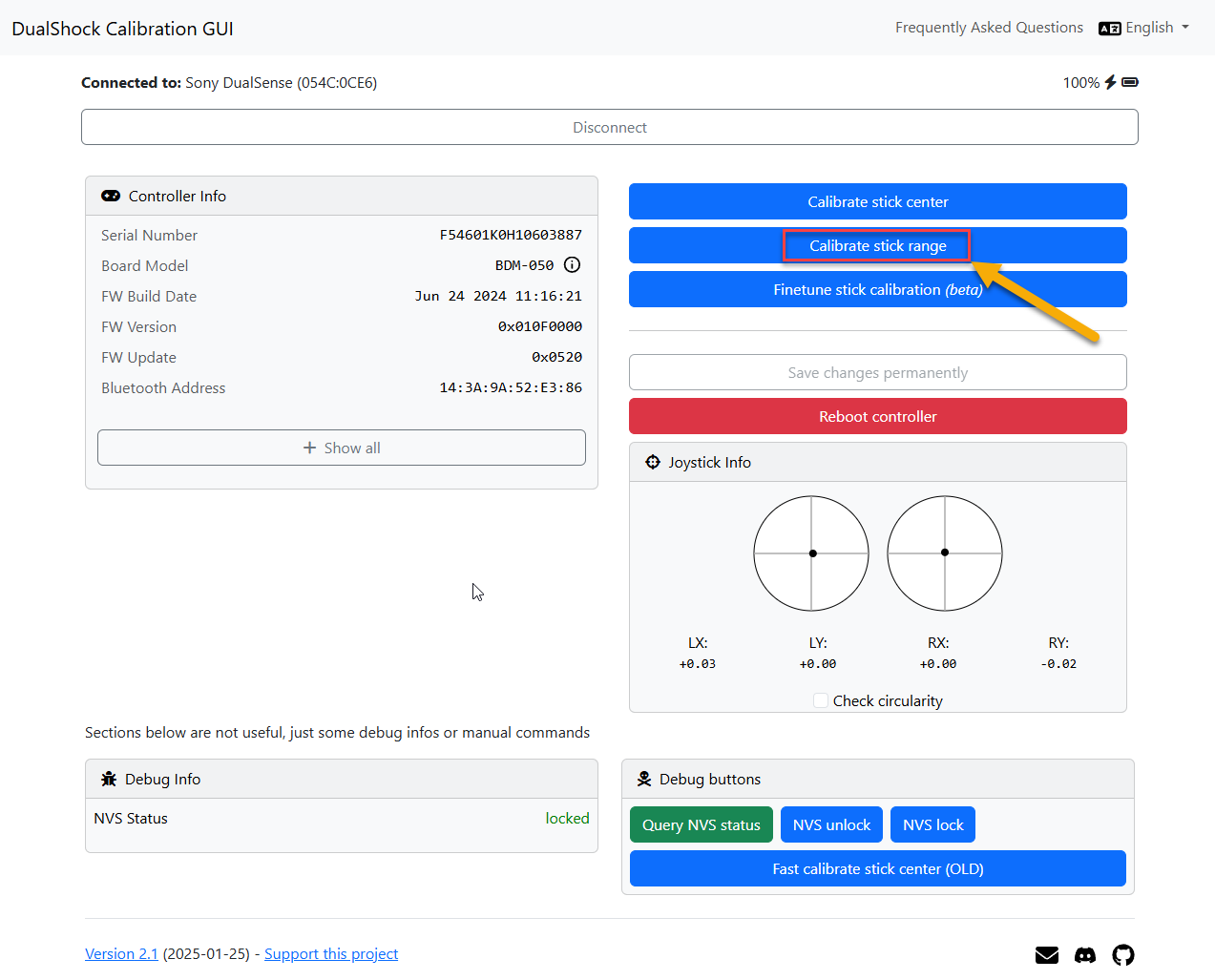

- Click DONE. Next you will calibrate the stick range.
- Follow the on-screen instructions. Move both sticks in slow, full circles, pressing against the edges of the stick holes with minimal force. Applying too much pressure, or not reaching the edge can cause inconsistent results.
- Once you've moved the sticks in a few complete circles, click "Done." The controller will now move in a better circle while hitting "1.00" in all cardinal directions.
NOTE: If you forget to move the sticks and hit "Done," then the sticks will look stuck in the corner of the circle. Do not worry, just run the range calibration again and follow the instructions.
Pressing the sticks too hard into the edge of the controller will force the edge of the circle to be past what is typical in usage and will not hit 1.00 in all directions. Run the tool again and press with delicate force against the circle edge.
- If you are unhappy with the results of either calibration, run them again as many times as needed. Sometimes the first calibration will improve the controller and the second will perfect it.
- If you are still unhappy with the results, it may be time to the "Reboot controller" button to set the controller back to its default values. If you have not hit "Save changes permanently," then the controller will reset back to how it was before you plugged it in.
If resetting and repeating these steps still does not result in a satisfactory recalibration, it is possible your components are too physically worn, and may need repair. You can visit our Service Center to learn more about the repair process.
- Finally, once you have finished all of the steps and you are happy with the results select "Save changes permanently" to finalize the calibration. This will overwrite the default controller values permanently.
FAQ
When should I use this tool?
- When your controller is new or relatively new but exhibiting stick drift.
- When you are experiencing stick drift at or below default deadzone settings in-game.
- If your Battle Beaver controller is experiencing stick drift above default deadzone settings using this calibration tool may fix the issue, but it may also require a physical mech replacement in the event that the drift is occurring due to a physical defect or damage. You can have that done using our Service Center.
Can I use this with a non-Battle Beaver controller?
Yes. However, we have only verified this tool with OEM controllers and our controllers, which are modified OEM controllers.
We cannot verify it will work with other companies' modified controllers or 3rd party PS4/5 controllers. If you are using this tool with controllers other than OEM or Battle Beaver controller do so at your own risk.
As of 9/20/2024, this tool works on all OFFICIAL PS4 Dualshock and PS5 Dualsense models. It does not work on the PS5 DualSense Edge, any Xbox controllers, or any 3rd Party / Non-OEM controllers (think Fly Digi or 8Bitdo).
Can I use this for Xbox controllers?
No. Currently this tool is only usable for PS4 and PS5 controllers. You can find instructions on recalibrating PlayStation controllers here:
Will non-PS4/5 controllers be supported in the future?
The developer is working on adding the support of the following controllers in the future, so stay tuned!
Is this tool developed by or professionally associated with Battle Beaver?
No. But we really like it and if you also really like it, then we encourage you to support its creator here.
