Recalibration Tool for Xbox Wireless Controllers

Since the beginning we have had special place in our hearts for DIY and at-home solutions, so we're happy to spread the news whenever there is a tried and true solution to one of the many problems we all face.

We're happy to share that the Xbox Accessories App now contains a recalibration tool! Available on both PC and Series X|S Consoles.

Before following this guide, please see our article on understanding what thumbstick drift is and how it can influence in-game settings:

https://battlebeavercustoms.com/pages/understanding-stick-drift

Did you read it? Thanks.

What this program does is sample where your thumbsticks sit naturally and then 'reset' your X and Y axis default positions to (0,0). Basically recalibrating the manufacturer's original settings and moving the center of your thumbsticks to sit closer to (0,0). While the hardware itself and using your controller in general will affect these values, this tool can help ensure that their calibration is as close to a true zero as possible.

Disclaimers

This is not guaranteed not fix stick drift. If your controller's thumbstick mechanisms are too old or too worn down, you most likely should have them replaced instead of using this tool. This tool can only move values to a better position; it cannot bring a physically broken mech back from the dead.

Battle Beaver is not responsible for any damage or unintended outcomes to modifying your controller with this tool.

How to Get Started Using the Tool

1. This tool only works in 1080p resolution screens or higher (at the time of this writing), a smaller screen may not be able to see all available options. Navigate to, or open your browser and download, the Xbox Accessories App from Microsoft: https://apps.microsoft.com/detail/9nblggh30xj3

2. Connect your controller to your PC or console via USB cable.

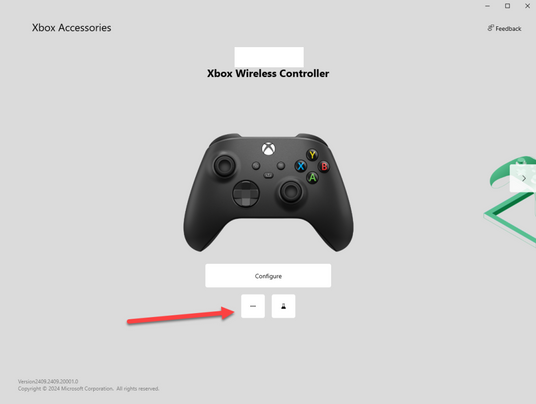

3. Select "More Options" below the 'Configure' button.

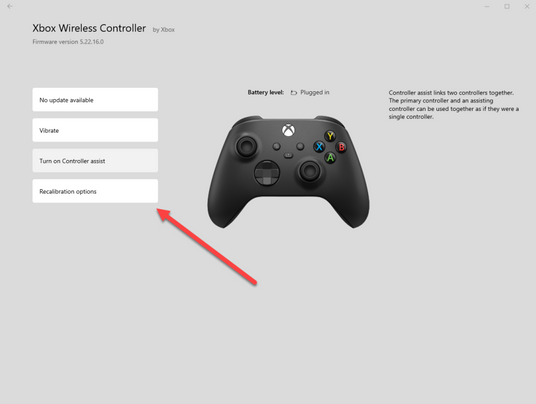

4. Select "Recalibrate Options"

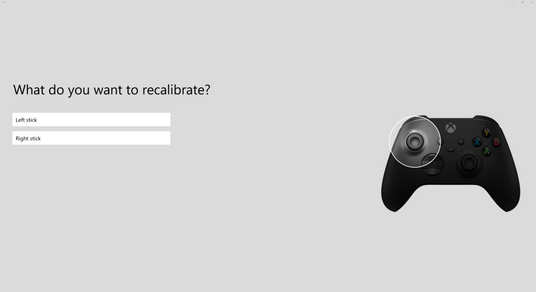

5. Choose which stick that needs recalibration.

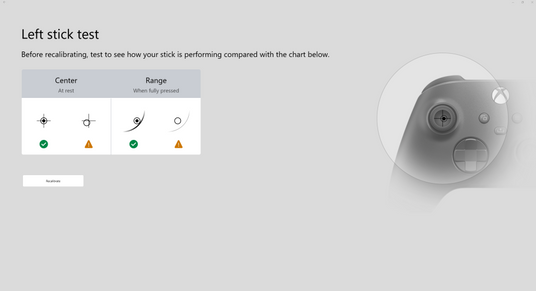

6. Select "Recalibrate" and follow the prompts on screen.

7. Select 'Exit' and repeat steps #5 and #6 as needed.

FAQ

When should I use this tool?

• When your controller is new or relatively new but exhibiting stick drift.
• When you are experiencing stick drift at or below default deadzone settings in-game.
  • If your Battle Beaver controller is experiencing stick drift above default deadzone settings using this calibration tool may fix the issue, but it may also require a physical mech replacement in the event that the drift is occurring due to a physical defect or damage. You can have that done using our Service Center.

Does this work with Xbox Elite model controllers?

At the time of this writing, the recalibration steps DO NOT work with Elite model Xbox controllers.

Can I use this with a non-Battle Beaver controller?

Yes. However, we have only verified this tool with OEM controllers and our controllers, which are modified OEM controllers.

We cannot verify it will work with other companies' modified controllers or 3rd party Xbox controllers. If you are using this tool with controllers other than OEM or Battle Beaver controller do so at your own risk.

Can I use this for PS5/4 controllers?

No. Currently this tool is only usable for Xbox Wireless controllers. You can find instructions on recalibrating PlayStation controllers here:

https://support.battlebeavercustoms.com/hc/en-us/articles/29440423162772-Recalibration-Tool-for-DualShock-DualSense-Controllers
